Product Description:
The street bike adopts a lightweight design and has excellent
handling performance. They often feature efficient braking systems
and sharp steering, allowing drivers to maneuver through heavy
traffic and curved roads with ease. Our street bikes are designed
with meticulous attention to detail and aesthetics. Our design team
strives to create a unique, stylish and attractive look. Each
vehicle is carefully tuned to ensure that its appearance and lines
are smooth and pleasing to the eye.
Technical Parameters:
| MAIN SPECIFICATION |
| ENGINE |
| Engine Type: | Single-cylinder,air-cooled, 4-stroke |
| Displacement (ml): | 106.7ml |
| Bore X Stroke (mm): | 52.4*49.5 |
| Compression Ratio: | 9.0:1 |
| Max. Power (kw/r/min) | 5.2/7500 |
| Max. Torque (N.m/r/min): | 7/5000 |
| Max. Speed (Km/h): | ≥90 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch |
| Ignition: | CDI |
| Starting System: | Electric/Kick start |
| Transmission System: | Chain drive |
| CHASSIS |
| Front shock absorber: | hydraulic pressure and spring |
| Rear shock absorber: | hydraulic pressure and spring |
| Chassis structure: | Steel tube and steel plate,rhombic structure |
| Rear fork: | steel |
| Front Brake: | Disc/Drum Brake |
| Rear Brake: | Drum Brake |
| Front Tire: | 2.5-18 |
| Rear Tire: | 3.00-17 |
| Muffler: | steel |
| Steering Head Angle: | 39/41 |
| Wheel rim | Alloy/Spoke |
| Battery: | 12V5Ah |
| DIMENSIONS |
| L X W X H (mm): | 1920*770*1080 |
| Seat Height (mm): | 845mm |
| Wheelbase (mm): | 1250mm |
| Min. Ground Clearance (mm): | 160mm |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity: | 2 Persons |
| Dry. Weigth (kg): | 85 |
| Fuel Tank Capacity (L): | 8 |
| Packing Size (mm): | 1480×380×860 |
| Packing Weight (kg): | 105
|

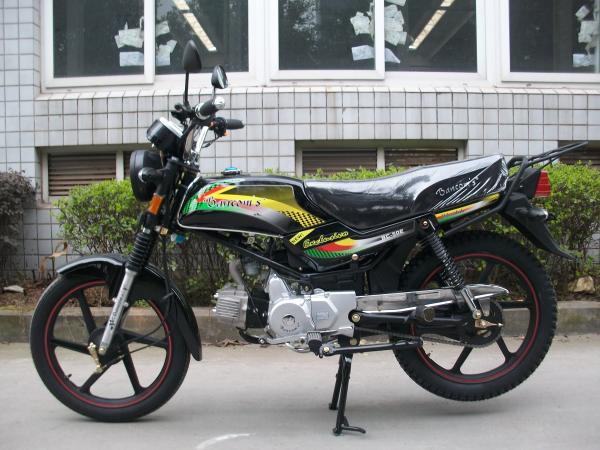

Product Photos:
Applications:
The street motorcycle excels in urban environments, demonstrating
exceptional performance on city roads. With their lightweight
design and agile handling, they offer unparalleled maneuverability,
making them highly suitable for navigating through congested urban
traffic and busy streets. The nimble nature of street motorcycles
allows riders to swiftly navigate through tight spaces, change
lanes effortlessly, and weave through traffic with ease.
Shipping:
Packing:
FAQ:
Q1. WHAT is your motorcycles terms of payment?
A: T/T 30% as deposit, and 70% before shipping.
Q2. HOW about your motorcycles delivery time?
A: Generally, it will take 30 to 35 days after receiving your
advance payment.
The specific delivery time depends on the items and the quantity of
your order.
Q3. WHAT is your motorcycles terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. CAN you produce motorcycles according to the samples?
A: Yes, we can produce by your samples, photos or description, if
necessary, and then modify the details till you're satisfied.
Q5. WHAT is your motorcycles termd of packing?
A: 1. CKD(Completely Knock Down): Carton Package or Wooden Package Motorcycle
2. SKD(Semi Knock Down) : Wooden Frame+Carton Case or Plywood Box Motorcycle
Q6. DO you test all your motorcycles goods before delivery?
A: Yes, we have 100% test before delivery. Before mass production,
we will make a unit of motorcycle sample and test it till its
quality pass. In the production, your order will be followed by QC
during every step. Every product must be checked and signed before
they move to the next process
