Ace Motor Taxi Street Motorcycle Full Chain Cover Big Carrier With
Foot Rest
Details:
| MAIN SPECIFICATION |
| ENGINE |
| Engine Type: | Single-cylinder,air-cooled, 4-stroke |
| Displacement (ml): | 144ml |
| Bore X Stroke (mm): | 52.4mm × 57.9mm |
| Compression Ratio: | 9.5:1 |
| Max. Power (kw/r/min) | 7.1/7500 |
| Max. Torque (N.m/r/min): | 9.2/6500 |
| Max. Speed (Km/h): | ≥90 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch |
| Ignition: | CDI |
| Starting System: | Electric/Kick start |
| Transmission System: | Chain drive |
| CHASSIS |
| Front shock absorber: | hydraulic pressure and spring |
| Rear shock absorber: | hydraulic pressure and spring, double rear shock absorbers |
| Chassis structure: | Steel tube and steel plate,rhombic structure |
| Rear fork: | steel |
| Front Brake: | Disc/Drum Brake |
| Rear Brake: | Drum Brake |
| Front Tire: | 2.5-17 |
| Rear Tire: | 2.75-17 |
| Muffler: | steel |
| Steering Head Angle: | 39/41 |
| Wheel rim | Alloy/Spoke |
| Battery: | 12V5Ah |
| DIMENSIONS |
| L X W X H (mm): | 1900﹡735﹡1025 |
| Seat Height (mm): | 780mm |
| Wheelbase (mm): | 1200mm |
| Min. Ground Clearance (mm): | 160mm |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity: | 2 Persons |
| Dry. Weigth (kg): | 95 |
| Fuel Tank Capacity (L): | 9L |
| Packing Size (mm): | 1480×380×860 |
| Packing Weight (kg): | 105 |
Factory introduction:
Chongqing Qiyuan Motorcycle Co., Ltd is specialized in
manufacturing various types of motorcycles, engines and spare
parts. It's founded in March 2010 and located in Chongqing, China.
We have complete product assembly, testing and packaging lines, and
provide various types of test reports and certifications required
to domestic and overseas customers. To satisfy customers' different
products and services needs, we established Chongqing Sonics
International Trade Co., Ltd in 2017, we operate Motorcycle
products, Agricultural machinery, Gasoline generators, Diesel
generators, Photovoltaic products, Office supplies and other
products. Our business scope covers West Africa, South America,
East Europe and other regions. We focus on the construction of
product quality and the customer's after-sales experience. We are
eager to provide customers around the world with stronger
productivity, competitiveness and profitability products. And
looking forward to growing with you!
FAQ:
Q: What configurations are available?
A: MP3, USB, Remote Controller, Alarm.
Q: Can I set my own colors?
A: Customed color and sticker design is accepted.
Q: What are the engine displacements?
A: The engine displacement options are 125CC or 150CC or 200CC.
Q: What other accessories are available?
A: Rear rack or Small rear carrier or Tail box.
Q: What are the types of footrest?
A: Rear long footrest and Small rear footrest.
Q: What are the types of Front fender?
A: Steel fender and plastic fender.

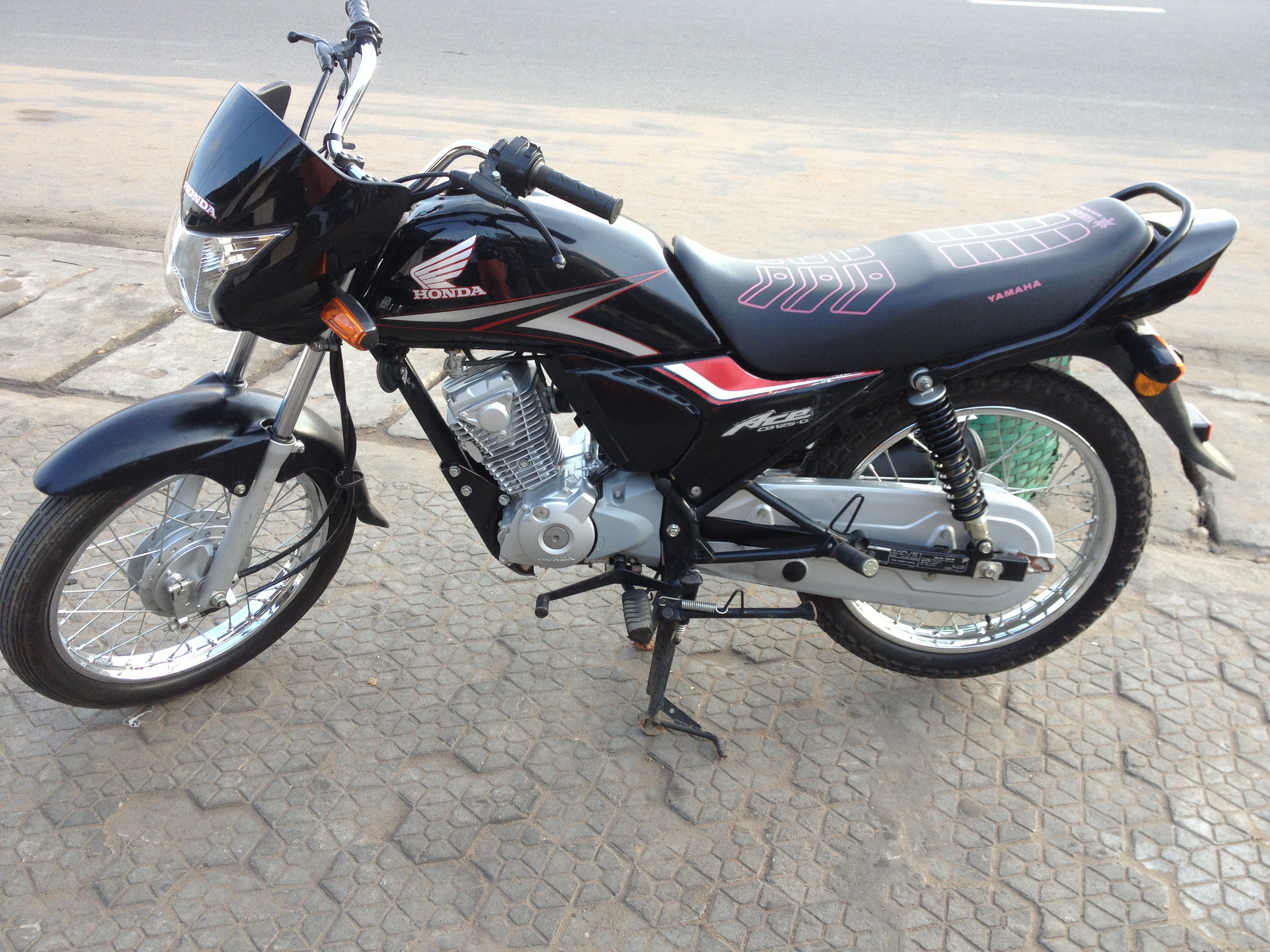

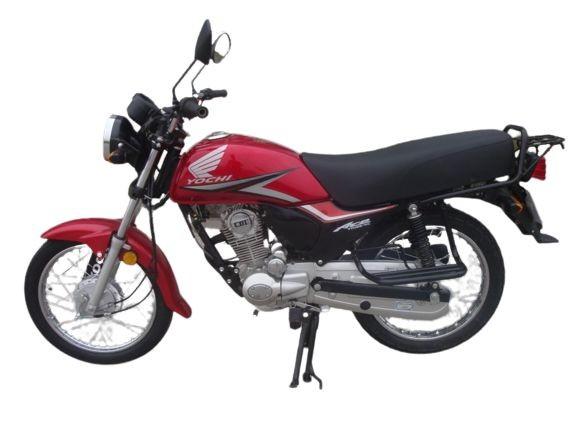

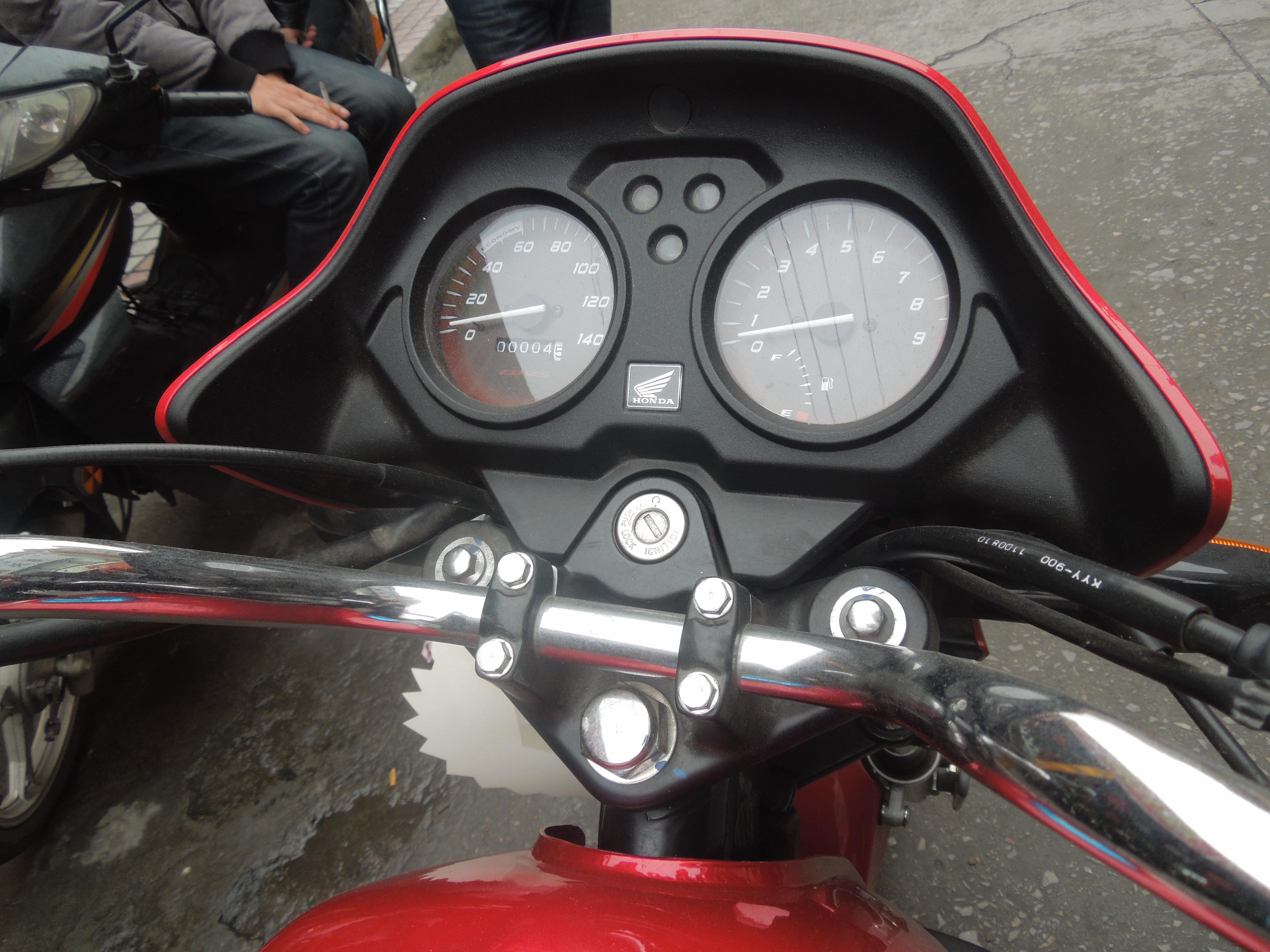

Product shows:
