Factory Packed Box Test
Wave 110CC CUB Motorcycle CDI Ignition PZ17 Carburter Full Chain
Cover
Details:
| MAIN FUNCTIONS |
| Size (LXWXH) :1900×680×1100mm | Displacement:106.7 |
| Wheelbase 1190mm | Compression Ratio:9:1 |
| Engine model: YX110 | Carburetor: Equal vacuum type |
| Ground Clearance: 130mm | Max power:5.1kw/8000r/min |
| Engine type: Single-cylinder Air-cooled, 4-stroke | Max. torque:7.2N•m(5000 r/min) |
| Fuel Capacity (l): 4.3L | Ignition: CDI |
| Wheels Front/rear: Spoke/Aluminum rim | Starter: Electric/kick |
| Types Front: 2.50-17L/175Kpa | Shift type: 1-N-2-3-4 |
| Types Rear: 2.75-17P/225Kpa | Drive Train: Chain |
| Suspensions Front/Rear:Telescopic, coil spring, oil damped / Swing
arm type, coil spring, oil damped | Spark plug:A6RTC/CR6HSA |
| Brakes Front:Drum/Disk | Bore×Stroke: 52.4×49.5mm |
| Brakes Rear: Drum Brake | |
| Dry Weight: 95kg | |
| Max. loading: 150kg | |
| climbing ability: ≥16° | |
| Min fuel: 1.4L/100km | |
Product description:
1. Cub motorcycle manufacturing is our advantage compared with other factory, Technology R & D team with
more than 10 years of experience for CUB motorcycle.
2. This Cub motorcycle is that we pay tribute to the classic. It is
economical and welcomed by the Southeast Asian market
3. New designed high quality halogen headlight and turn light make the CUB
motorcycle have more sport style. Provide continuous safety
lighting.
4. 2 year or 30000 Km quality guarantee demonstrates our confidence
in our products and our commitment to our customers.
5. 96 units SKD packing and 170 sets CKD packing help customers
save transportation costs and avoid damage during the
transportation.
Options:
MP3, USB, Remote Controller, Alarm
Customed Color And Sticker Design Is Accepted
Engine: YB110/Z110/C110/YB115
Lagguge: Rear rack/ Small rear carrier / Tail box
Wheel: Alloy wheel/Spoke wheel
Brake: Front disc brake/drum brake

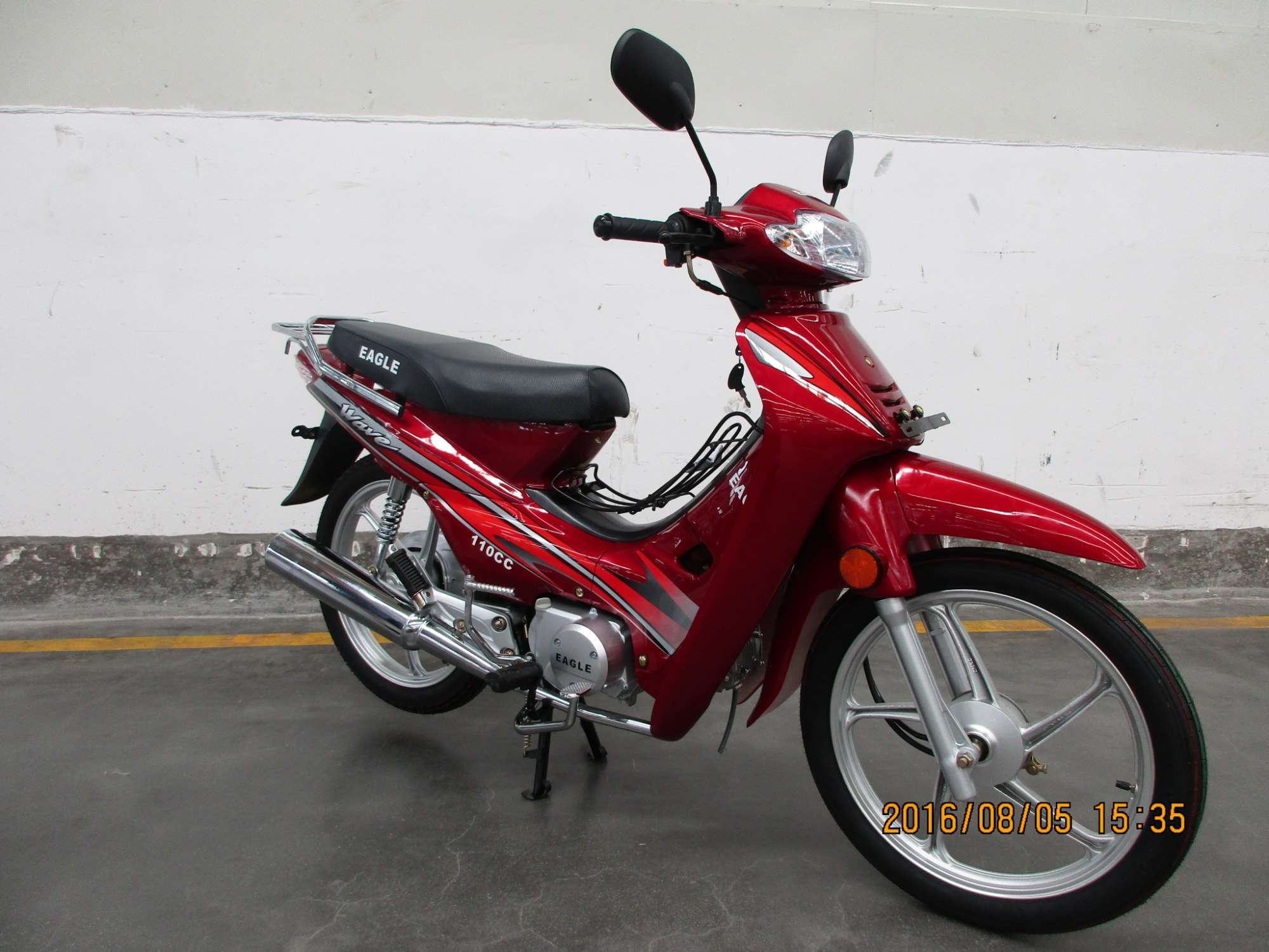

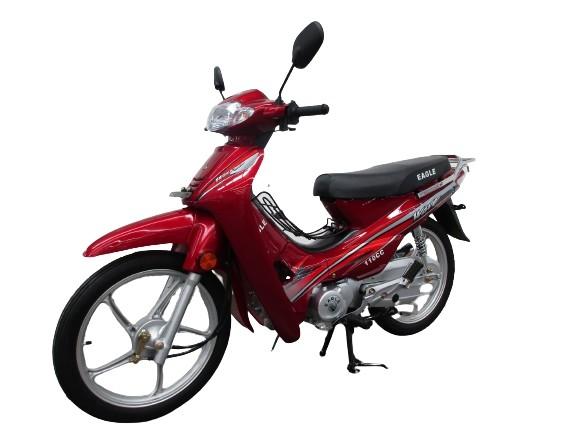

Product shows:
