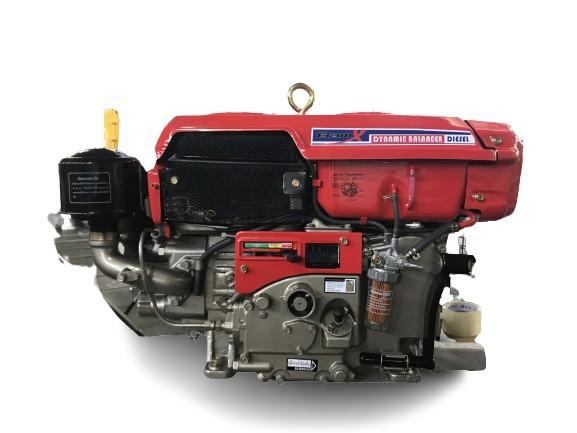

    11l Diesel Pump Engine 4 Stroke , 7kw Horizontal Water Cooled Diesel Engine

    Ask Lasest Price
    Brand Name : BAMX
    Model Number : ET95 ET110
    Certification : CCC
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10000 unit per year
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    11l Diesel Pump Engine 4 Stroke , 7kw Horizontal Water Cooled Diesel Engine


    ET95 ET110 Diesel Engine Water-Cooled 4-Stroke Horizontal


    Details:


    MAIN SPECIFICATION
    MODELET95ET110
    TypeWater-Cooled, 4-Stroke, Horizontal, Diesel Engine
    No of Cylinder(unit)1
    Cylinder Bore*Stroke(mm*mm)86*9092*90
    Displacement Volume (cc)522598
    Maximum Power9.5/240011/2400
    hp/rpm (kW/rpm)(7/2400)8.1/2400
    Continuons Rated Power8.5/240010/2400
    hp/rpm (kW/rpm)(6.3/2400)(7.35/2400)
    Sepcific Fuel Consumption at Rated Power g/kWh( g/hph )258(190)264(194)
    Compression Ratio0.875694444
    Valve Clearance (mm)0.195-0.235
    Max torque(kgf.m/rpm)3.1/16003.8/1600
    Cooling Water Capacity(L)2.1
    Fuel Tank Capacity(L)11
    Lubrication Oil Capacity (L)2.8
    FuelLight Diesel Oil (SAE No.2-D)
    Lubrication OilSAE 40API CF
    Combustion SystemSwirl Pre-Combustion Chamber
    Cooling systemPressurized Radiator type
    Lubricating systemTrochoid Pump
    Air Cleaner TypeWet-Type (Oil Bath - Type)
    Starting SystemDouble Speed Hand Starting/The ES Model Feature an Electric Starter
    Direction of RotationClockwise as Viewed from The Starting Handle(Right Hand Rotation)
    Battery (ES Model Only)12 Volt Battery (Minimum 30 amperes - hour/Ah)
    N.W.(kg)103108
    G.W.(kg)118123
    Packing dimension(L*W*H)890*410*630mm
    Container Loading (20'GP/40'HQ)100/230100/220

    Guarantee: 2 year or 30000 km

    Delivery time: 30 Work days


    Product shows:

    1. Cameo governor system lntelligence to serve all condition with fast response and high acceleration.
    2. Muffler net to prevent user from burn.
    3. New streamlining design head lamp with blue lens and LED lights Constant vision with low speed and high speed Multi reflective for better clear vision especial in night time.
    4. Deep Toroidal Bowl Type Piston -- The design is to maximize air flow and deliver an efficient mixture of air and fuel for a complete combustion. A low-speed torque is increased and make it perfect for heavy-duty performance and rugged terrain.
    5. Durable Valve Seats -- Stainless valve seat provide more durability to cylinder head. Valve seats can be replaced without a necessary to change a cylinder head.
    6. Direct Injection Combustion System -- Fuel economy optimized by Multi-injection nozzle and high performance fuel pump Super valve create more durability to engine life.


    Options:


    Customed Brand Design Is Accepted


    Prodrct shows:
