Product Description:
The 200cc engine delivers optimal power output, making it
well-suited for both urban commuting and thrilling off-road
adventures. Its impressive acceleration and torque capabilities
enable effortless navigation through diverse road conditions,
whether you're cruising through city streets or conquering
challenging mountain terrains.
Moreover, this 200cc off-road motorcycle emphasizes practicality
and versatility. Equipped with a robust suspension system and
superior shock absorption, it offers exceptional handling and
comfort, ensuring stability on rough and uneven roads. The spacious
and comfortable seat, along with its thoughtful design, enhances
long-distance riding comfort, while the ample storage space
provides convenient options for carrying essentials and personal
belongings.
Technical Parameters:
| Engine | | | Engine Type: | Single cylinder,air-cooled,four stroke, | | Displacement (ml): | 173.6 | | Bore X Stroke(mm): | 67×57.5 | | Compression Ratio: | 9.2:1 | | Max. Power (kw/r/min) | 10/7000 | | Max. Torque (N.m/r/min): | 13/5500 | | Max. Speed (Km/h): | ≥85 | | Lubrication: | Pressure ,splash | | Clutch Type: | Multiplate wet clutch, Manual | | Ignition: | CDI | | Starting System: | Electric/Kick Start | | Transmission System: | Chain drive | | The left and right steering angle | left 39º right 40º | | CHASSIS | | | Front Brake: | disc/drum brake | | Rear Brake: | drum brake | | Front Tire: | 3.50-17 | | Rear Tire: | 4.60-17 | | Battery: | 12V/7AH | | DIMENSIONS | | | L X W X H (mm): | 2000*800*850 | | Seat Height (mm): | 850 | | Wheelbase (mm): | 1340mm | | Min. Ground Clearance(mm): | 200 | | Max. Permissionable Weight (kg): | 165 | | Rider Capacity: | 2 Person | | Dry. Weigth (kg): | 125 | | Engine Oil (L): | 1L SAE15W/40 | | Fuel Tank Capacity (L): | 14 | | Roll angle (°) | 10° |
|

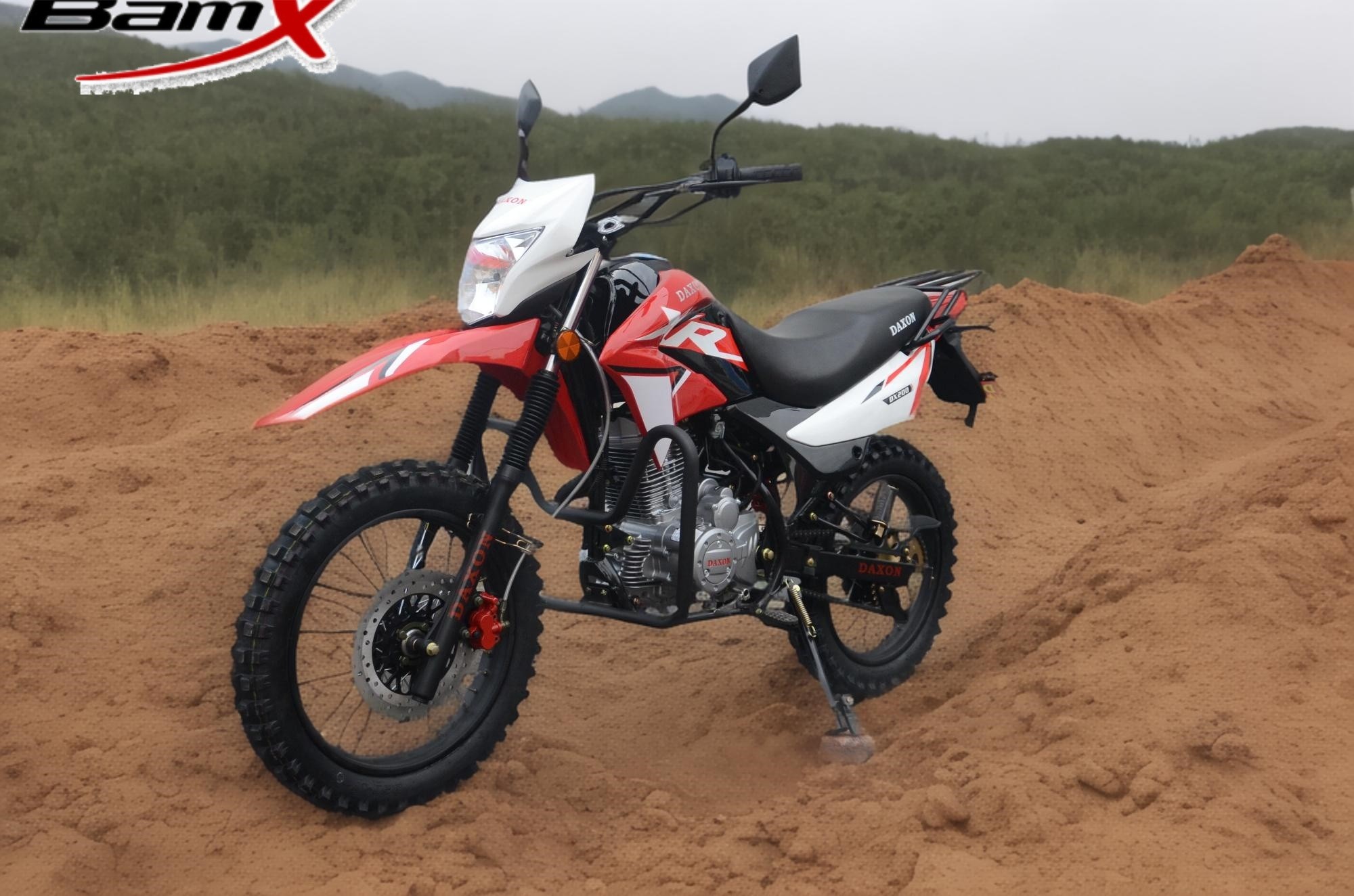

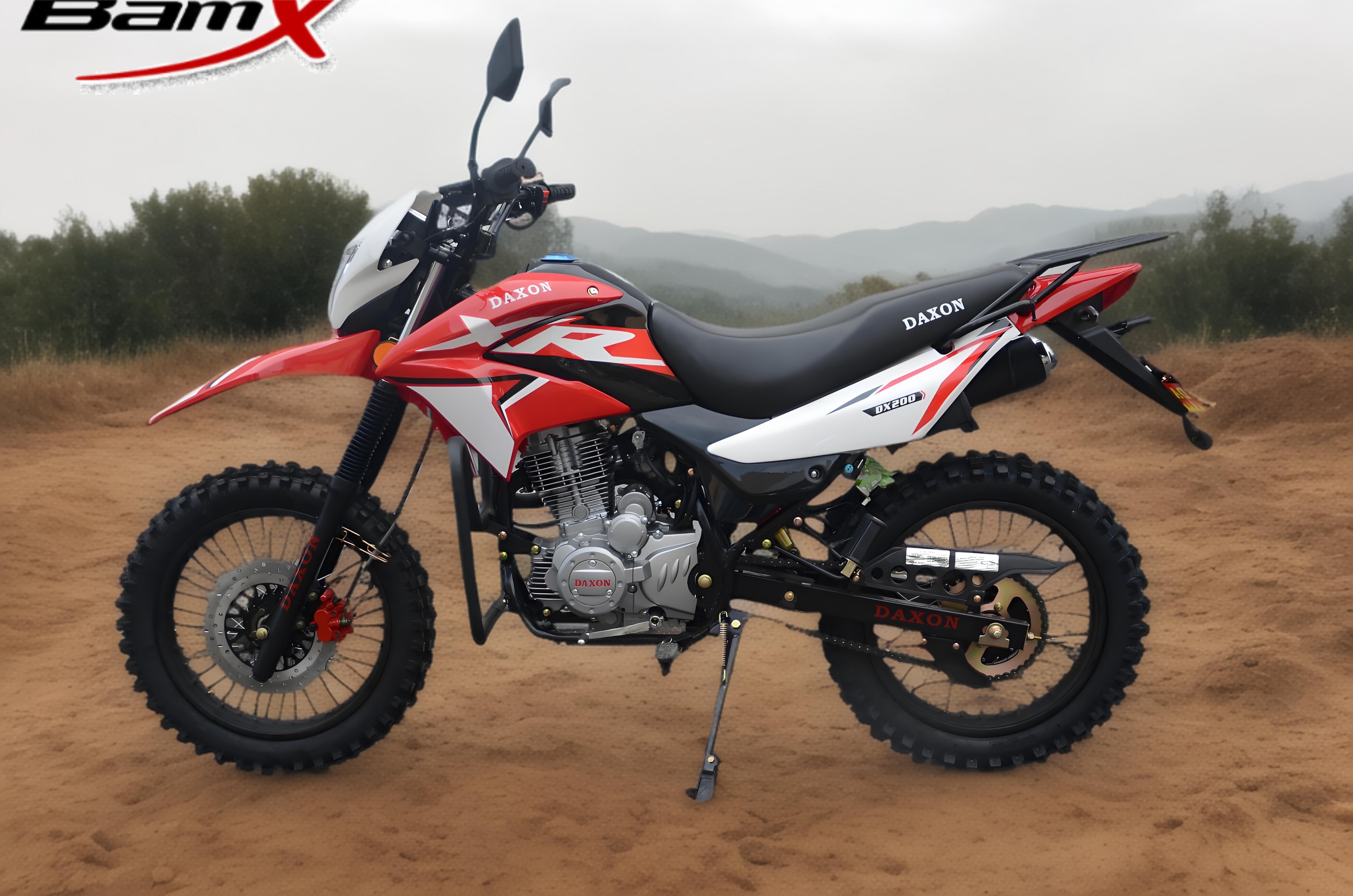

Pictures:
Packing and Shipping:
We offer two packaging methods. 1. SKD 2. CKD. To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided.
INSPECTION AND TEST:
Our test and inspector will check all aspects and the bikes
carefully, test all the fuctions, make sure performance of the
parts
Company introduction:
We have complete product assembly, testing and packaging lines, and
provide various types of test reports and certifications required
to domestic and overseas customers. Our business scope covers West
Africa, South America, East Europe and other regions. We focus on
the construction of product quality and the customer's after-sales
experience. We are eager to provide customers around the world with
stronger productivity, competitiveness and profitability products.
And look forward to growing and making progress with you!
1.The whole product chain enables customers to have more product
choices
2. Our professional R&D technical support team ensures regular
release of new products
3. Providing our customized services to customers enables us to
obtain long-term customer trust
