Product Description:
This 200cc off-road motorcycle, made by a reputable Chinese
factory, offers practicality, reliability, and outstanding
performance tailored to various needs. With its excellent features,
it has become a sought-after means of transportation.
Firstly, this motorcycle boasts high-quality components and a
meticulously assembled engine, ensuring exceptional reliability and
durability. The Chinese manufacturing industry's extensive
experience and technological advancements in motorcycle production
guarantee that each unit meets stringent quality standards through
rigorous quality control and testing processes.
Secondly, the 200cc engine delivers optimal power output, making it
well-suited for both urban commuting and thrilling off-road
adventures. Its impressive acceleration and torque capabilities
enable effortless navigation through diverse road conditions,
whether you're cruising through city streets or conquering
challenging mountain terrains.
Technical Parameters:
| Engine | |
| Engine Type: | Single cylinder,air-cooled,four stroke, |
| Displacement (ml): | 173.6 |
| Bore X Stroke(mm): | 67×57.5 |
| Compression Ratio: | 9.2:1 |
| Max. Power (kw/r/min) | 10/7000 |
| Max. Torque (N.m/r/min): | 13/5500 |
| Max. Speed (Km/h): | ≥85 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch, Manual |
| Ignition: | CDI |
| Starting System: | Electric/Kick Start |
| Transmission System: | Chain drive |
| The left and right steering angle | left 39º right 40º |
| CHASSIS | |
| Front Brake: | disc/drum brake |
| Rear Brake: | disc/drum brake |
| Front Tire: | 3.50-17 |
| Rear Tire: | 4.60-17 |
| Battery: | 12V/7AH |
| DIMENSIONS | |
| L X W X H (mm): | 2000*800*850 |
| Seat Height (mm): | 850 |
| Wheelbase (mm): | 1340mm |
| Min. Ground Clearance(mm): | 200 |
| Max. Permissionable Weight (kg): | 165 |
| Rider Capacity: | 2 Person |
| Dry. Weigth (kg): | 125 |
| Engine Oil (L): | 1L SAE15W/40 |
| Fuel Tank Capacity (L): | 14 |
| Roll angle (°) | 10° |

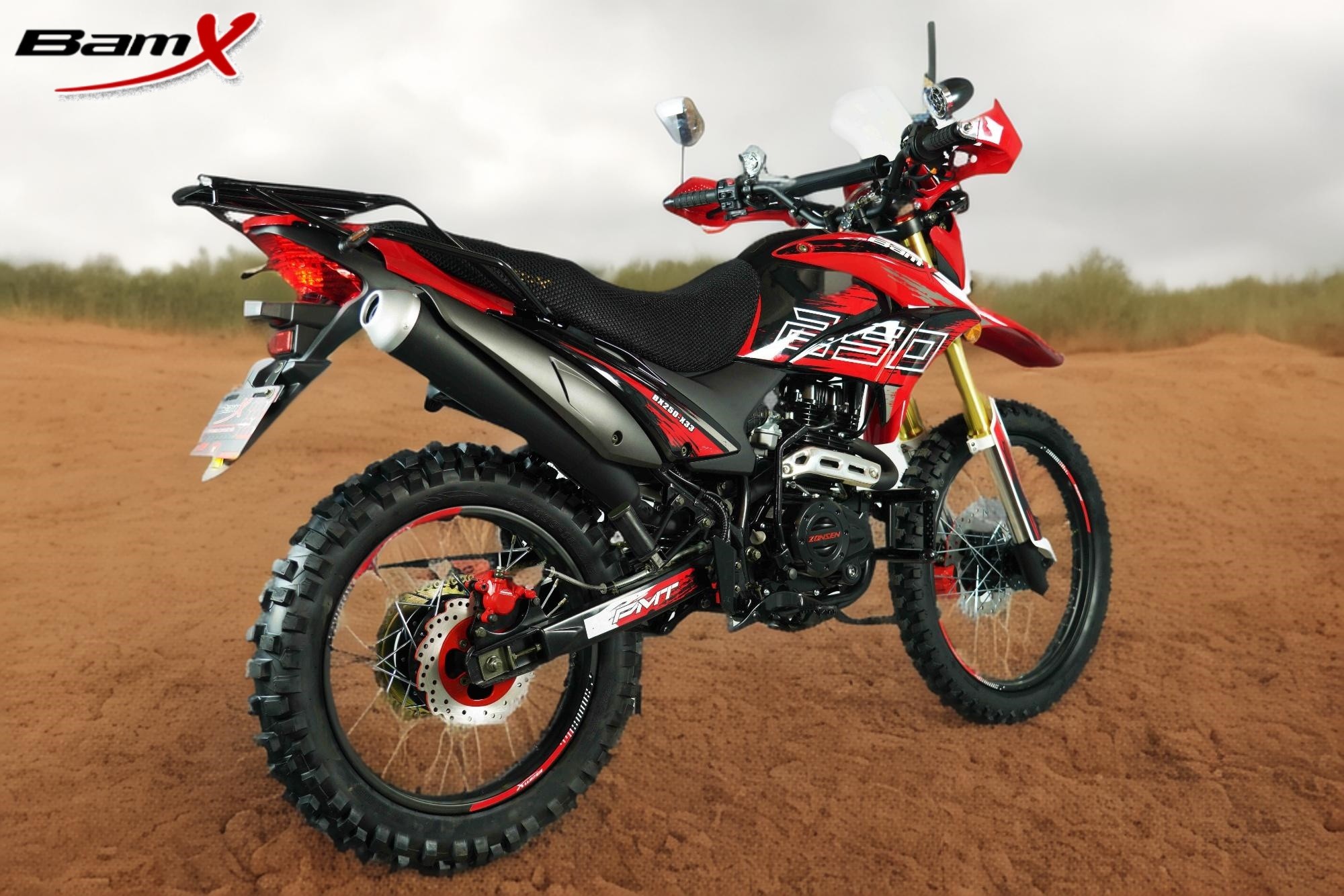

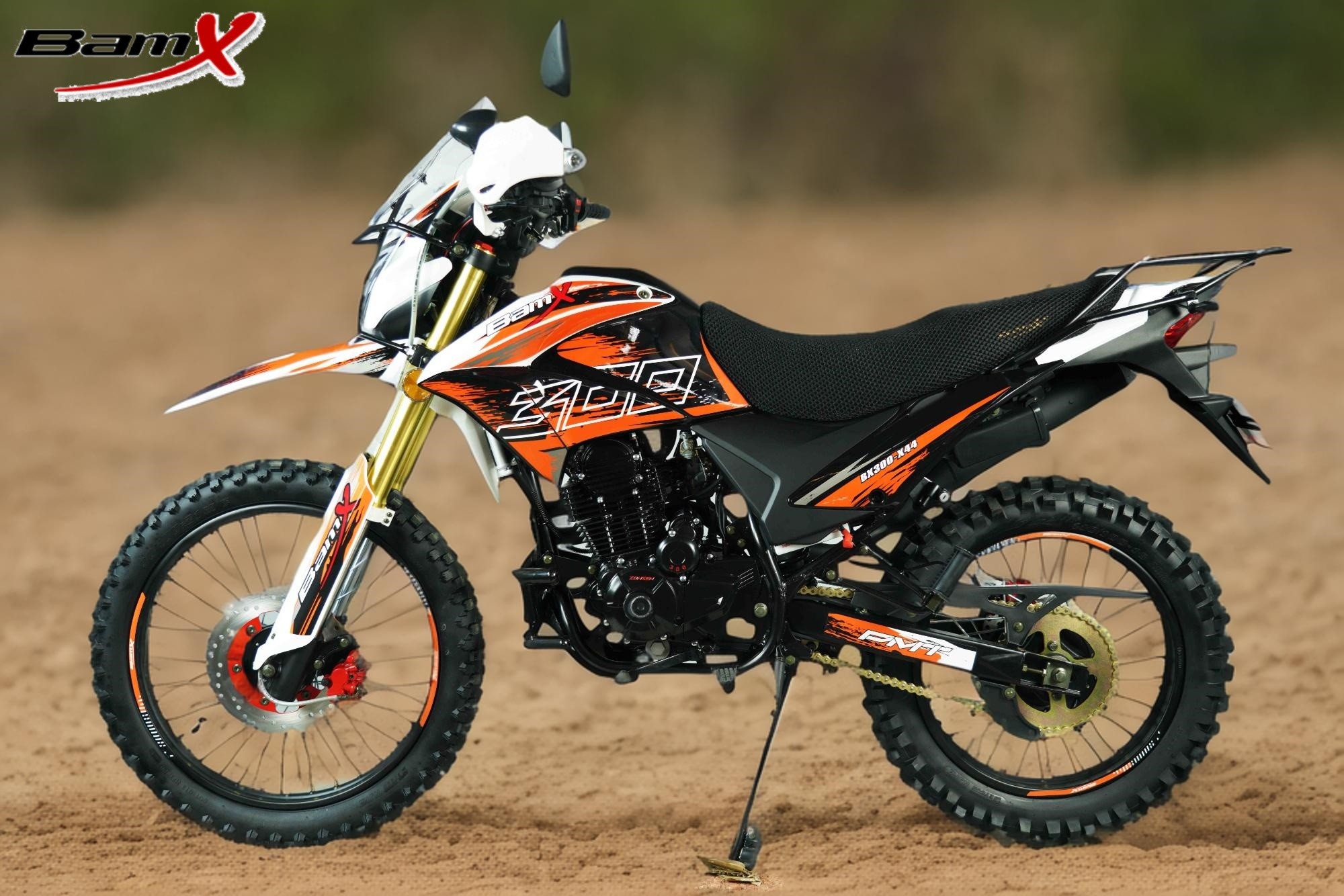

Pictures:
Packing and Shipping:
Full Container Shipping
We always recommend our buyers to start with 1x40HQ(at least 1x20GP
for trial order). Full container loading can reduce the
cost, give products the best protection, and help to orgnize
producing.
Company introduction:
Use best parts supplier, this is to keep the high standard
materials and finishing, also dimension and heat treatment, to make
sure best fit and long life using.
Company introduction:
We have complete product assembly, testing and packaging lines, and
provide various types of test reports and certifications required
to domestic and overseas customers. Our business scope covers West
Africa, South America, East Europe and other regions. We focus on
the construction of product quality and the customer's after-sales
experience. We are eager to provide customers around the world with
stronger productivity, competitiveness and profitability products.
And look forward to growing and making progress with you!
1.The whole product chain enables customers to have more product
choices
2. Our professional R&D technical support team ensures regular
release of new products
3. Providing our customized services to customers enables us to
obtain long-term customer trust
