Product Description:
Protective Features: Off-road adventures can be unpredictable, so
this motorcycle includes protective features to minimize potential
damage. Features such as reinforced handguards, skid plates, and
sturdy frame protectors shield the motorcycle from impacts,
branches, and debris, ensuring durability and longevity.
Easy Maintenance: This motorcycle is designed with ease of
maintenance in mind. Accessible components and user-friendly design
elements make routine maintenance tasks, such as oil changes and
filter replacements, straightforward and hassle-free, allowing you
to spend more time enjoying your off-road adventures.
Technical Parameters:
| Engine | |
| Engine Type: | Single cylinder,air-cooled,four stroke, |
| Displacement (ml): | 149 |
| Bore X Stroke(mm): | 62×49.5 |
| Compression Ratio: | 10.3:1 |
| Max. Power (kw/r/min) | 9/8500 |
| Max. Torque (N.m/r/min): | 11.0/7500±500 |
| Max. Speed (Km/h): | ≥85 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch, Manual |
| Ignition: | CDI |
| Starting System: | Electric/Kick Start |
| Transmission System: | Chain drive |
| The left and right steering angle | left 39º right 40º |
| CHASSIS | |
| Front Brake: | disc/drum brake |
| Rear Brake: | drum brake |
| Front Tire: | 2.75-21 |
| Rear Tire: | 4.10-18 |
| Battery: | 12V/7AH |
| DIMENSIONS | |
| L X W X H (mm): | 2080×830×1120 |
| Seat Height (mm): | 850 |
| Wheelbase (mm): | 1300mm |
| Min. Ground Clearance(mm): | 200 |
| Max. Permissionable Weight (kg): | 165 |
| Rider Capacity: | 2 Person |
| Dry. Weigth (kg): | 115 |
| Engine Oil (L): | 1L SAE15W/40 |
| Fuel Tank Capacity (L): | 11 |
| Roll angle (°) | 10° |

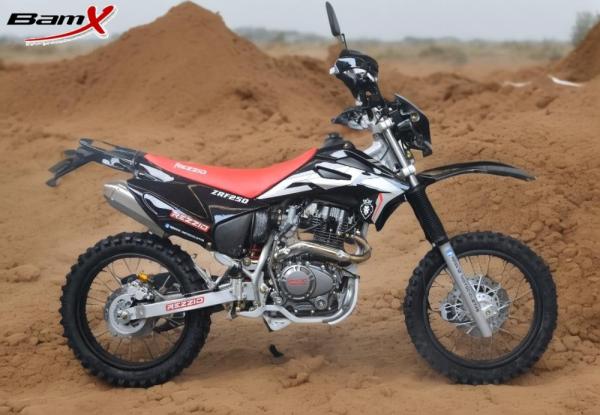

Pictures:
Packing and Shipping:
Full Container Shipping
We always recommend our buyers to start with 1x40HQ(at least 1x20GP
for trial order). Full container loading can reduce the
cost, give products the best protection, and help to orgnize
producing.
1 Year of 6000km Guarantee:
We are confident to ensure our quality to our buyers, long time
guarantee helps to build our business, and build good image into
our buyers group. We are happy to do that, and always continue.
Factory introduction:
Chongqing Qiyuan Motorcycle Co., Ltd is specialized in
manufacturing various types of motorcycles, engines and spare
parts. It's founded in March 2010 and located in Chongqing, China.
We have complete product assembly, testing and packaging lines, and
provide various types of test reports and certifications required
to domestic and overseas customers. To satisfy customers' different
products and services needs, we established Chongqing Sonics
International Trade Co., Ltd in 2017, we operate Motorcycle
products, Agricultural machinery, Gasoline generators, Diesel
generators, Photovoltaic products, Office supplies and other
products. Our business scope covers West Africa, South America,
East Europe and other regions. We focus on the construction of
product quality and the customer's after-sales experience. We are
eager to provide customers around the world with stronger
productivity, competitiveness and profitability products. And
looking forward to growing with you!
